Gaia Aire Solutions Pte Ltd

Your complete GAS Solutions

What We Do

Oxygen Generator

Our oxygen generators produce 8 to 5,500 cubic feet of oxygen per hour with up to 95% purity. When powered and connected to a compressed air source, these reliable units supply oxygen for a wide range of applications, ensuring a consistent, efficient, and versatile solution for diverse needs.

Ozone Generator

Our ozone generator provides powerful air and water purification, effectively eliminating bacteria, viruses, and odors. Ideal for both residential and commercial use, it promotes healthier environments by reducing contaminants. This eco-friendly solution offers reliable performance, ensuring safe, efficient treatment with easy operation and minimal maintenance requirements. Perfect for diverse applications.

Nitrogen Generator

Our nitrogen generator offers a dependable, on-demand nitrogen supply tailored for commercial and industrial applications. It enhances operational efficiency by delivering high-purity nitrogen for industries like manufacturing, food processing, and pharmaceuticals. Designed for reliability and cost savings, it reduces dependency on gas deliveries, ensuring continuous, environmentally-friendly nitrogen production.

How Does It Work?

Our oxygen and ozone generators use compressed air and electricity to produce high-purity oxygen and ozone, offering an eco-friendly solution for applications such as water treatment, aquaculture, swimming pools, food kitchens, and odor management. By naturally breaking down contaminants, bacteria, and odors without harsh chemicals, these systems promote healthier environments. We provide either standalone equipment or complete tailored solutions, ensuring both high efficiency and environmental sustainability.

Call us

Rental of Oxygen Generator starts from

S$ 300.00 per month

Rental of Ozone Generator starts from

S$ 80.00 per month

T&C applies

WhatsApp Image 2022-01-27 at 09.10.55.jpeg

Click on the picture for more info

10LPM, 20PSIG

The Onyx Ultra.
Specifically designed for reliability, energy
efficiency, and ease-of-use, there are thousands of Onyx PSA Oxygen Generators currently in use throughout the world. The Onyx’s reliability, low noise level, and ability to
deliver up to 95% oxygen concentration make
it a perfect fit for many applications.
Features
■ Self-contained (internal air compressor)
■ Transportable roller base design
■ Advanced Engineering
■ Easy to install and maintain
■ Low operating cost
■ Time-proven reliability
■ High-impact polystyrene enclosure

Typical Applications
Manufacturing
■ Jewelry/Brazing/Soldering
■ Glass Work/Blowing
Environmental
■ Ozone (Generator) Feed Gas
■ Environmental Remediation
Additional
■ Fish Farming
■ Laboratory Experiments
■ Aquaponics
■ Hydroponics

15LPM

The Centrox is an oxygen generator ideal for use in many applications. The Centrox’s ability to deliver up to 95% oxygen concentration at flows of up to 32 SCFH (0.84 Nm3/hr or 15 LPM) make it a great fit for medical uses requiring up to 50 psig (345 kPa or 3.5 barg).

Features
■ Self-contained (internal air compressors)
■ Microprocessor controlled
■ Low operating cost
■ Automatic and unattended operation
■ Wall or rack mount design
■ Heavy duty metal enclosures
■ Oxygen concentration monitor

Typical Applications
■ Medical Oxygen Supply
■ Veterinary Medicine

Mini Pack O2 Gen

Designed specifically for applications with fixed flow and pressure characteristics, the
reduced size oxygen receiver feature of our
Mini Pack Generators offers a quick start-up
and a significantly smaller footprint than comparable systems that utilize a standard,
separate receiver. Simply connect the unit’s
inlet to a suitable compressed air source,
the oxygen outlet to the application, and the
power cord to an appropriate electrical source. Start the generator, adjust the regulator to the required oxygen pressure and within minutes, produce oxygen at up to 95.5% concentration.

Features
• Produces oxygen from an independent
compressed air source
• Microprocessor controlled
• Low operating cost
• Automatic and unattended operation
• Easy to install and maintain

Typical Applications
Environmental
• Ozone (Generator) Feed Gas
• Environmental Remediation
• Small footprint

Up to 6 bar, Standalone Oxygen Generator

GAS customized 20 to 60 LPM
Standalone with built-in Air Compressor
Pressure: 1-6bar
Oxygen Flow: 20 to 60 LPM
O2 Purity: 93%±3%
Work Mode: Continuous

Customized up to 300 LPM

Standard or Custom-Designed Systems.

Standard oxygen plants are available in either low pressure power-optimized or high
pressure cost-optimized designs. Low pressure plants generate nominal 93% oxygen at up to 15 psig (105 kPa or 1.03 barg) and consume approximately 400 kWh1 per ton of oxygen. High pressure plants generate nominal 93% oxygen at up to 65 psig (448 kPa or 3.0 barg) without the use of an oxygen compressor. They consume approximately
750 kWh1 per ton oxygen.
Custom-designed oxygen plants offer oxygen concentrations from 70 – 99%. An optional oxygen compressor delivers the oxygen at pressures up to 3,000 psig (20,685kPa or 2.06 barg).

Oxygen Refilling Plant

Cylinder Refilling Systems

AirSep Oxygen Cylinder Refilling Plants enable customers to fill oxygen cylinders for existing needs or to supply others. AirSep manufacturers a complete line of
turnkey oxygen cylinder refilling plants — with capacities from 8-100s of cylinders per day. Complete plants include a feed air compressor, feed air dryer, oxygen
generator, oxygen compressor, and a cylinder filling rack. The oxygen compressor
delivers oxygen at up to 2,200 psig (15,169 kPa or 151.6 barg) to a high pressure manifold capable of filling up to 10 cylinders at a time.
These cylinder refilling plants operate automatically and generate oxygen that
meets the United States and European Pharmacopoeia Oxygen 93 Percent (93%±3%) Monograph. For special applications, an optional high purity module can be added to the plant, to increase oxygen concentration to 99% ±.5%.

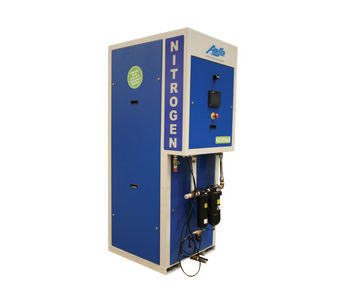

Nitrogen Generator

Pressure Swing Adsorption (PSA) Nitrogen Systems.

AirSep is the world leader in Pressure Swing Adsorption (PSA) technology. AirSep Nitrogen Systems use at least two vessels filled with carbon molecular sieve as adsorbers. As compressed air passes through one of the adsorbers, the carbon molecular sieve adsorbs the nitrogen. This allows the separated nitrogen to pass through the upper outlet connection of the adsorber vessel, which is then stored in the nitrogen buffer tank. Before the adsorber becomes saturated with nitrogen and breakthrough occurs, both the inlet air and the
nitrogen outlet valve close and the partially pressurized vessel equalizes with the second adsorber that is waiting to come online. This
allows for a pre-charging of the second adsorber before the first adsorber is then regenerated by desorbing the remaining adsorbed enriched-nitrogen gas through a depressurization cycle step. The complete cycle is then repeated. Under normal operating conditions,the carbon molecular sieve is completely regenerated and will last indefinitely.

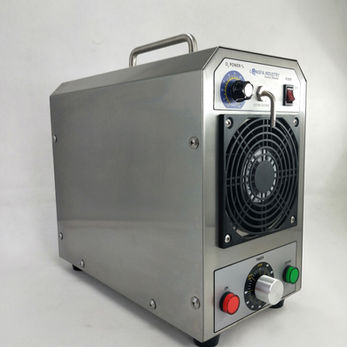

Ozone Generator

Introducing our customized 5g/hr ozone generator – a powerful, efficient, and compact, designed to meet different industry needs. Providing reliable ozone output, our generator is ideal for applications across many sectors, such as water treatment, food processing, odor control, and air purification.
Our smallest 5g/hr ozone generator offers a streamlined, high-performance system that effectively sterilizes, deodorizes, and removes harmful contaminants.
For industries requiring larger volumes, we offer customization options to scale up ozone output, making it suitable for high-demand applications like industrial wastewater treatment, large-scale agricultural operations, and pharmaceutical manufacturing. Our team works closely with clients to design tailored solutions that match the specific ozone concentration and delivery needs of their operations. With our customization options, businesses across a wide range of sectors can experience an ozone solution's enhanced efficiency and eco-friendly benefits.

Chlorine free

Chemical free
